IMG "Imagination has no limit"
IMG = CENTRIC-VISE | DUO-VISE | SINGLE-VISE
The IMG clamping system has 3 clamping functions in a single system.
The IMG CENTRIC vise converts easily into a fixed jaw vise (SINGLE)
or a double vise (DUO).
01
Fully encapsulated actuating spindle
IMG vises have a completely protected and encapsulated clamping spindle with a patented telescopic system.
Vises with protected Spindles usually use the slide as protection.
02
Centric
The IMG system as a self-centering vise
Technical characteristics:
• Centric clamping
• Clamping force up to 40 kN (80 Nm)
• Jaw width 125mm and 160mm
• Interface for zero point systems APS / WPS and Lang 96mm as standard
03
Duo
As a DUO double vise the IMG system has a full compensating mechanism (down to zero), so even two workpieces of different sizes can be clamped at the same time.
• Clamping force up to 55 kN (120 Nm)
• Jaw width 125 and 160mm
04
IMG Single
The IMG system as a single fixed jaw vise
• Clamping force up to 55 kN (120 Nm)
• Jaw width 125 and 160mm
05
SinterGrip jaws
The IMG system in combination with the SinterGrip technology clamps with a clamping force of up to 55 KN.
The patented SinterGrip system guarantees a very high clamping and milling performance.
06
Extremely large clamping range
The IMG system has an extremely large clamping range in relation to the total length of the system.
Span IMG 125-230 = 0-322mm
Span IMG 160-420 = 0-415mm
07

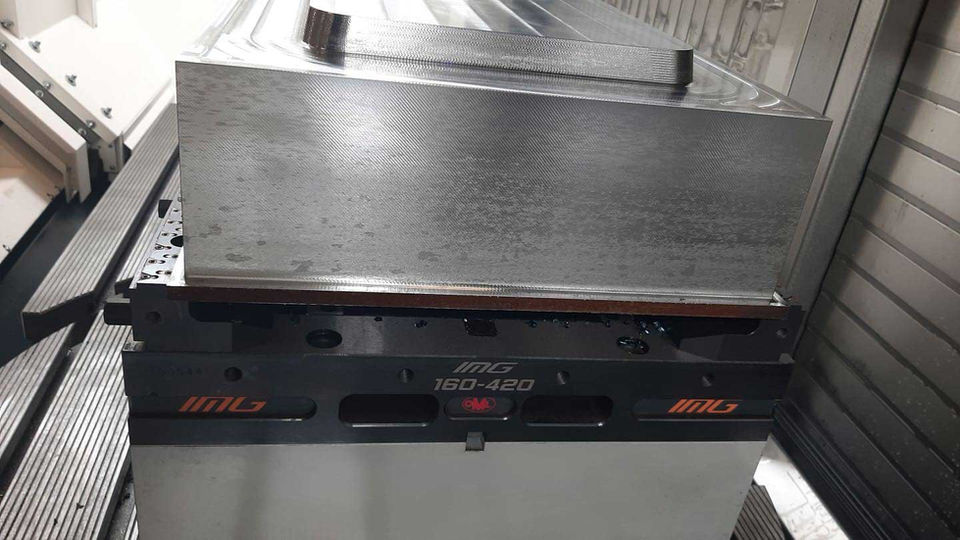

On Work
