Advantages of TOUCHDEX rotary tables compared with NC rotary tables

▸ Why TOUCHDEX? Your advantages at a glance

✔ 5-sided machining in a single setup
▸ Maximum precision: no re-clamping, no positional deviation.

▸ Higher efficiency: setup times reduced by up to 70 %.

▸ Consistent repeatability: perfect dimensional accuracy on every workpiece.

✔ 2 to 3 times higher cutting forces
▸ Mechanical, positive-locking indexing for maximum performance.

▸ Low vibration for better surface finish and longer tool life.

✔ 100 % stability and repeatability
▸ High-precision curvic toothing for exact clamping.

▸ Ideal for complex geometries and high-performance machining.

✔ Plug and play on every machine
▸ Direct integration, no modifications required.

▸ Productive immediately on all common machine tools.

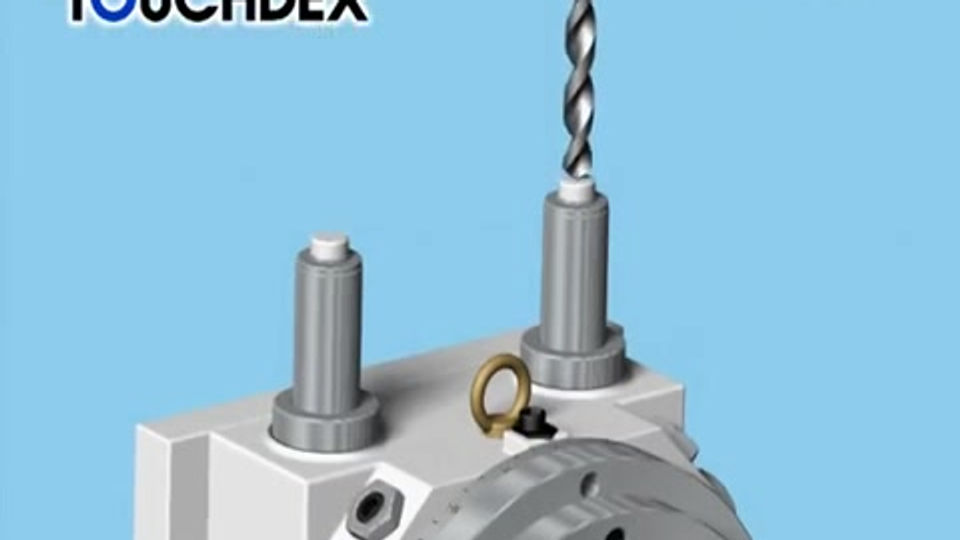

Touchdex rotary tables are highly flexible and semi-automatic systems, that are offered in various designs up to 5-axis machining. They can be used on all machine tools.

Higher productivity with TOUCHDEX rotary tables

due to 2-3 times higher cutting forces for all machining tasks.

The positioning and stable clamping takes place through a purely mechanical positive-locking indexing in a high-precision toothing. This guarantees 100% stability, high torque absorption, precision and rigidity. This means that cutting forces can be used that are 2-3 times higher than with NC rotary tables, and the extremely complex machine-side cable connection is no longer necessary.
