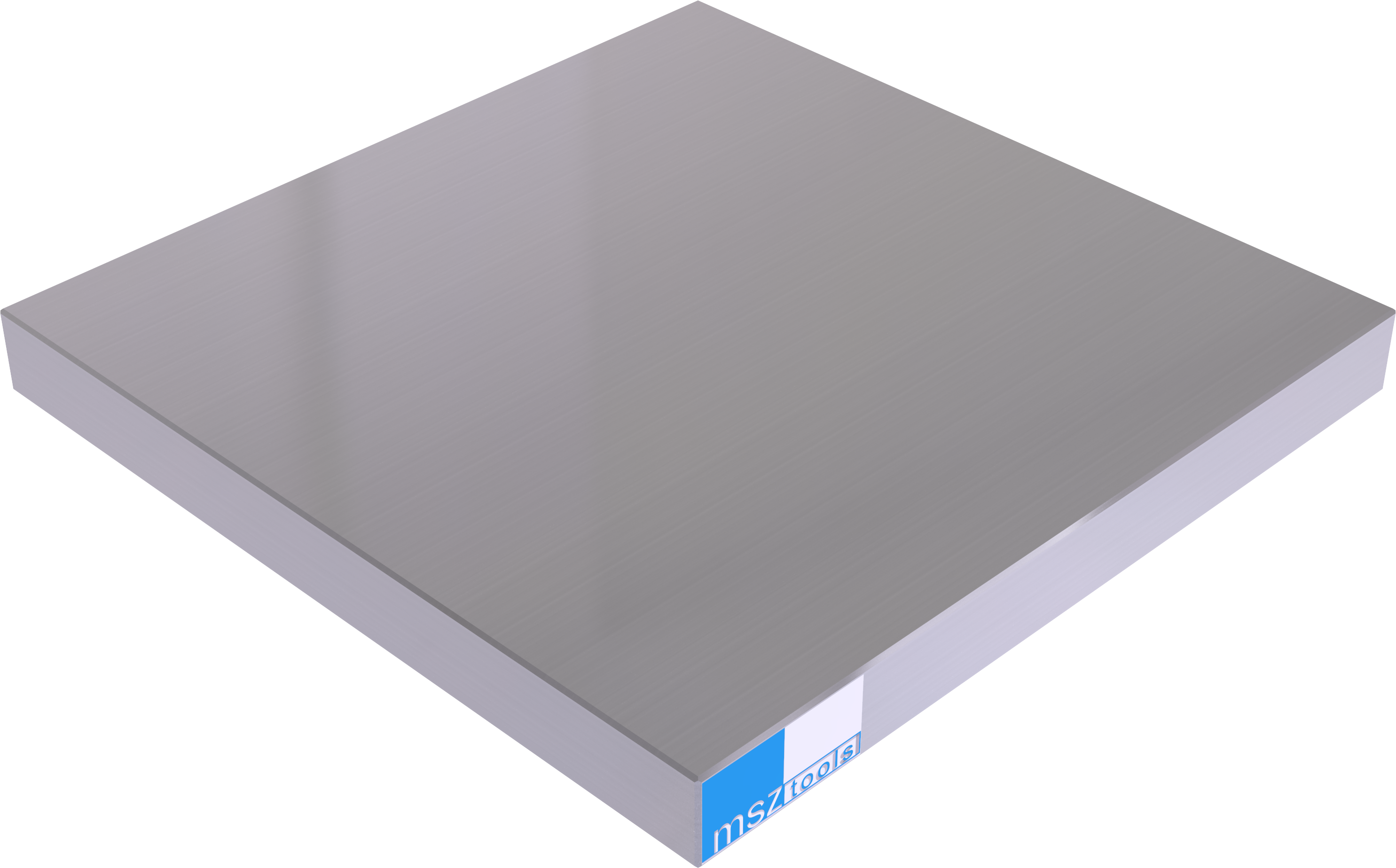

Clamping plate
Clamping plate, precision ground, without grid
Material: GG30 (GJL-300) Normalized and stress relieved
Very high geometric accuracy and durability
Machining on precision BAZ MAKINO and YASDA
Special dimensions also with allowance and other materials possible on request
standard dimensions
PDF 3D length Broad Height SP-10010020-01 SP-10010020-01 100 100 20 SP-15010020-01 SP-15010020-01 150 100 20 SP-20015025-01 SP-20015025-01 200 150 25 SP-25015025-01 SP-25015025-01 250 150 25 SP-20020025-01 SP-20020025-01 200 200 25 SP-25020025-01 SP-25020025-01 250 200 25 SP-25025025-01 SP-25025025-01 250 250 25
